Here's a collection of signals captured with a "grabber" consisting of an amplified whip antenna above my roof, an HP3746 selective level meter, and an FFT program called "Argo." In most cases I'm guessing the identity of the station. Also see the current grabber capture.

horizontal rule

11.902 kHz - little dashes a couple of minutes in length from Alpha station.

horizontal rule

40 kHz, JJY in Fukushima, Japan

horizontal rule

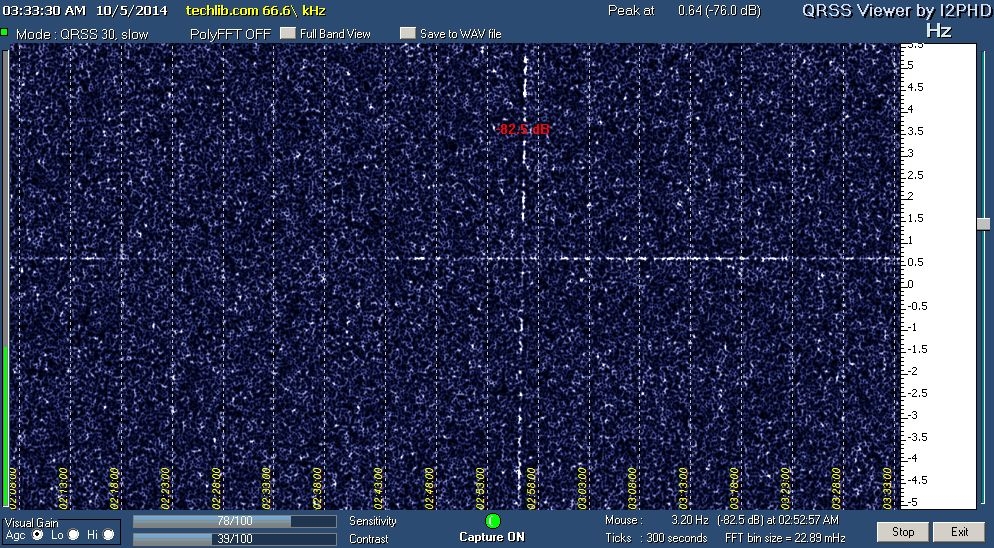

66.666 kHz, RBU in Moskva Russia (should be 0.666 Hz high)

horizontal rule

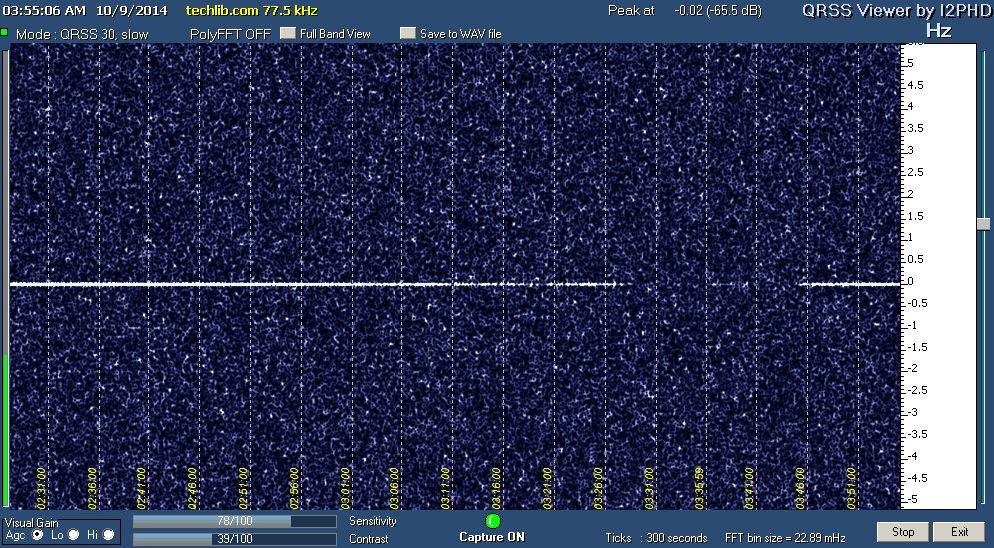

I'm thinking this is DCF77 in Germany at 77.5 kHz

horizontal rule

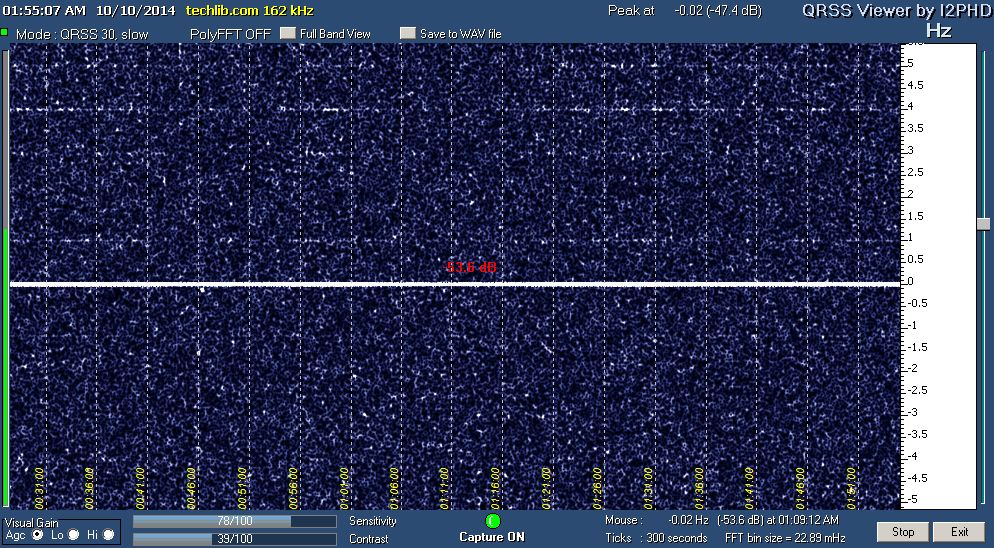

This is clearly the TDF signal from France. I can even see the rather weak 1 Hz sidebands from the weak modulation.

horizontal rule

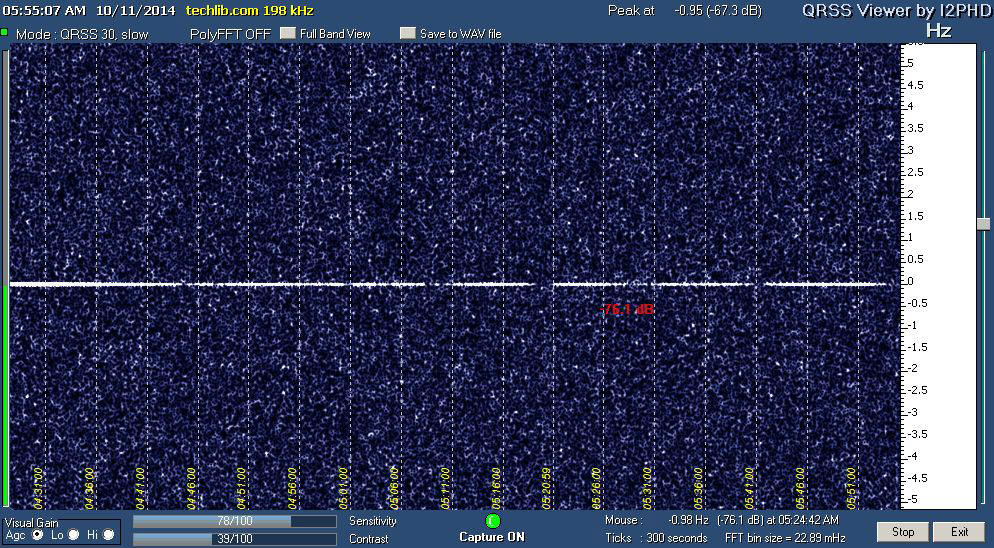

And the BBC station at 198 kHz is easily seen.
